AP Flexible Shaft
Concrete Pokers

Poker-Head and Shaft Options for the AP Range

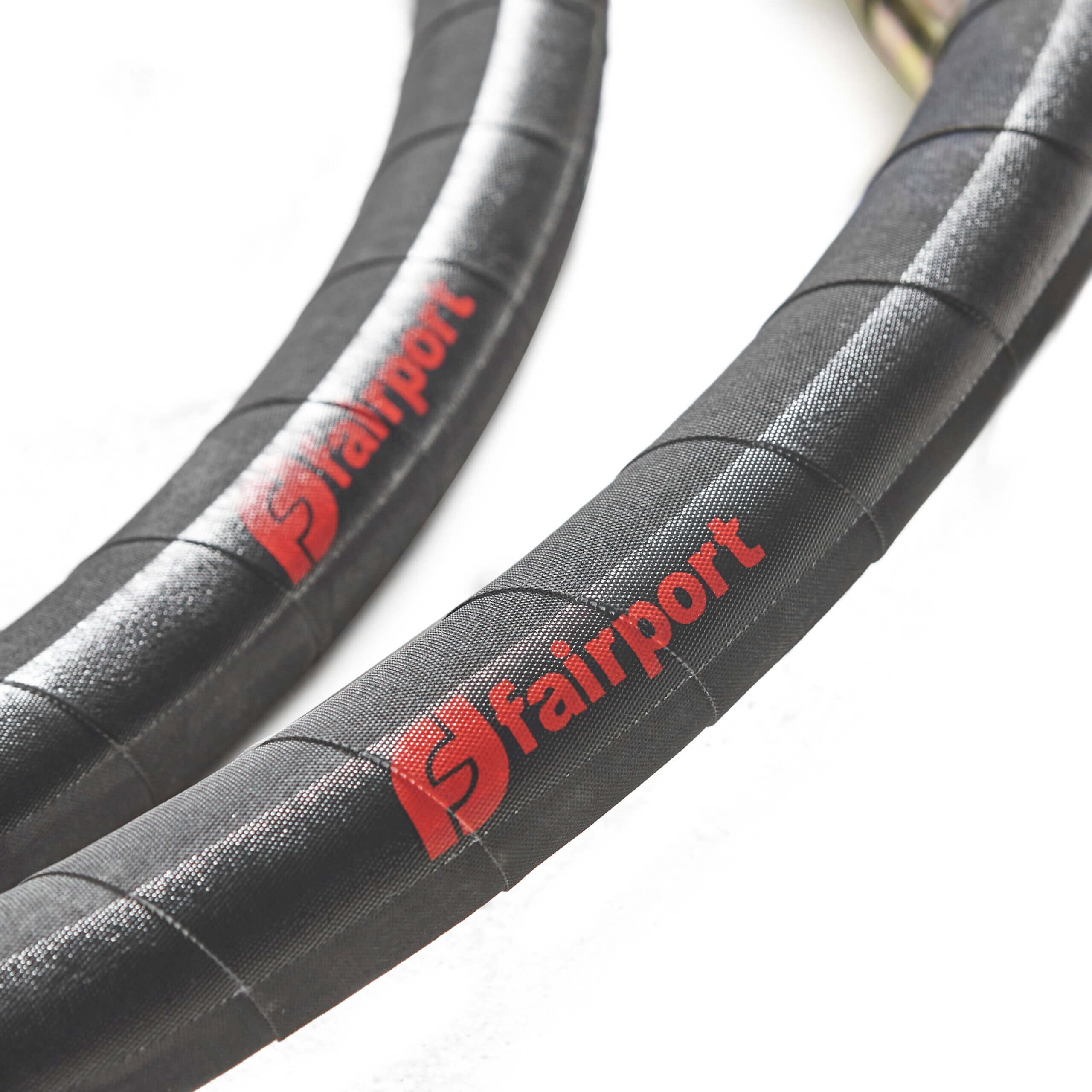

  • Supplied with a 6-metre flexible shaft as standard
  • Choice of four poker heads from 28 mm to 60 mm
  • High-frequency flexible-drive poker

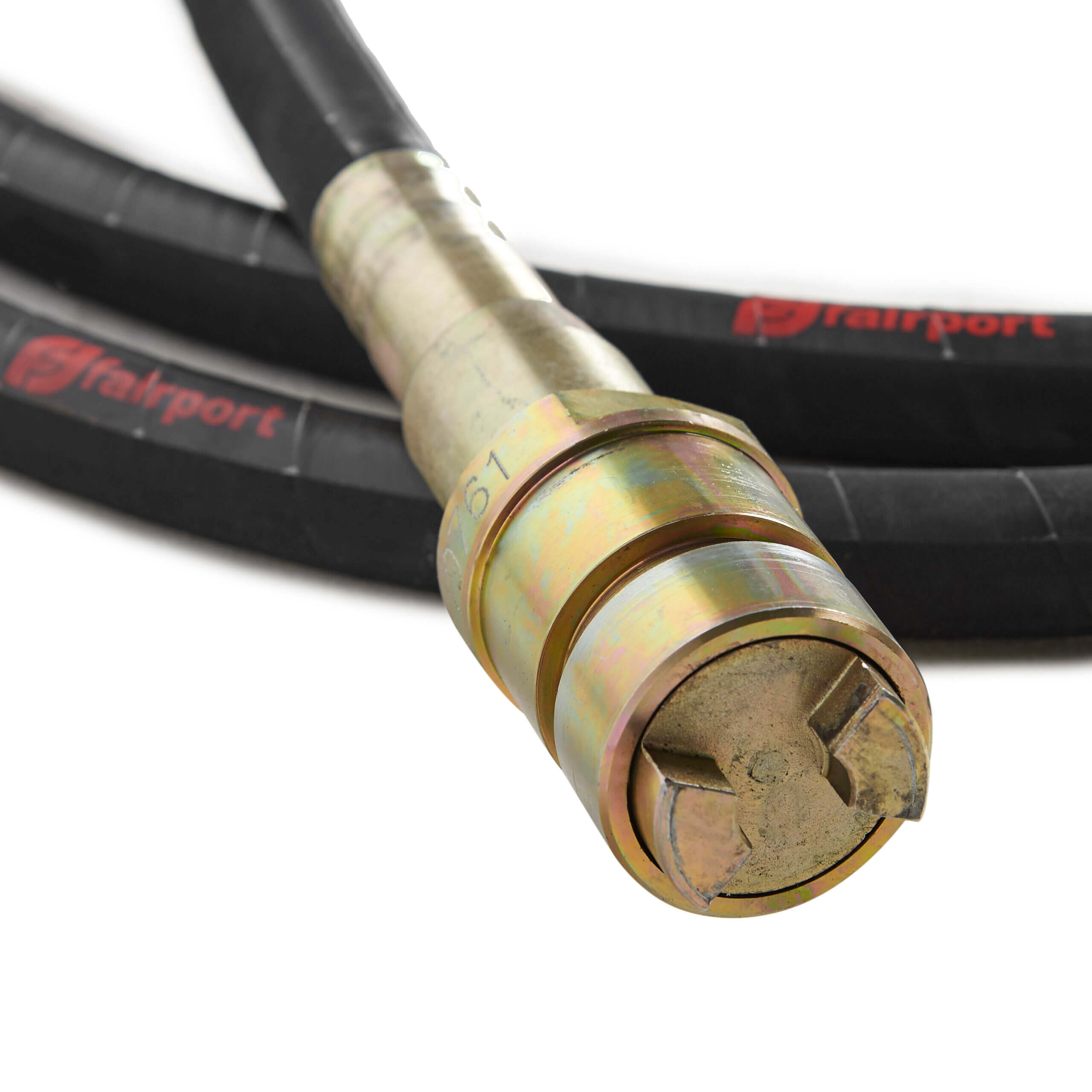

  • Dynapac-type coupling supplied as standard
  • 8-metre and 10-metre shaft options available for selected sizes

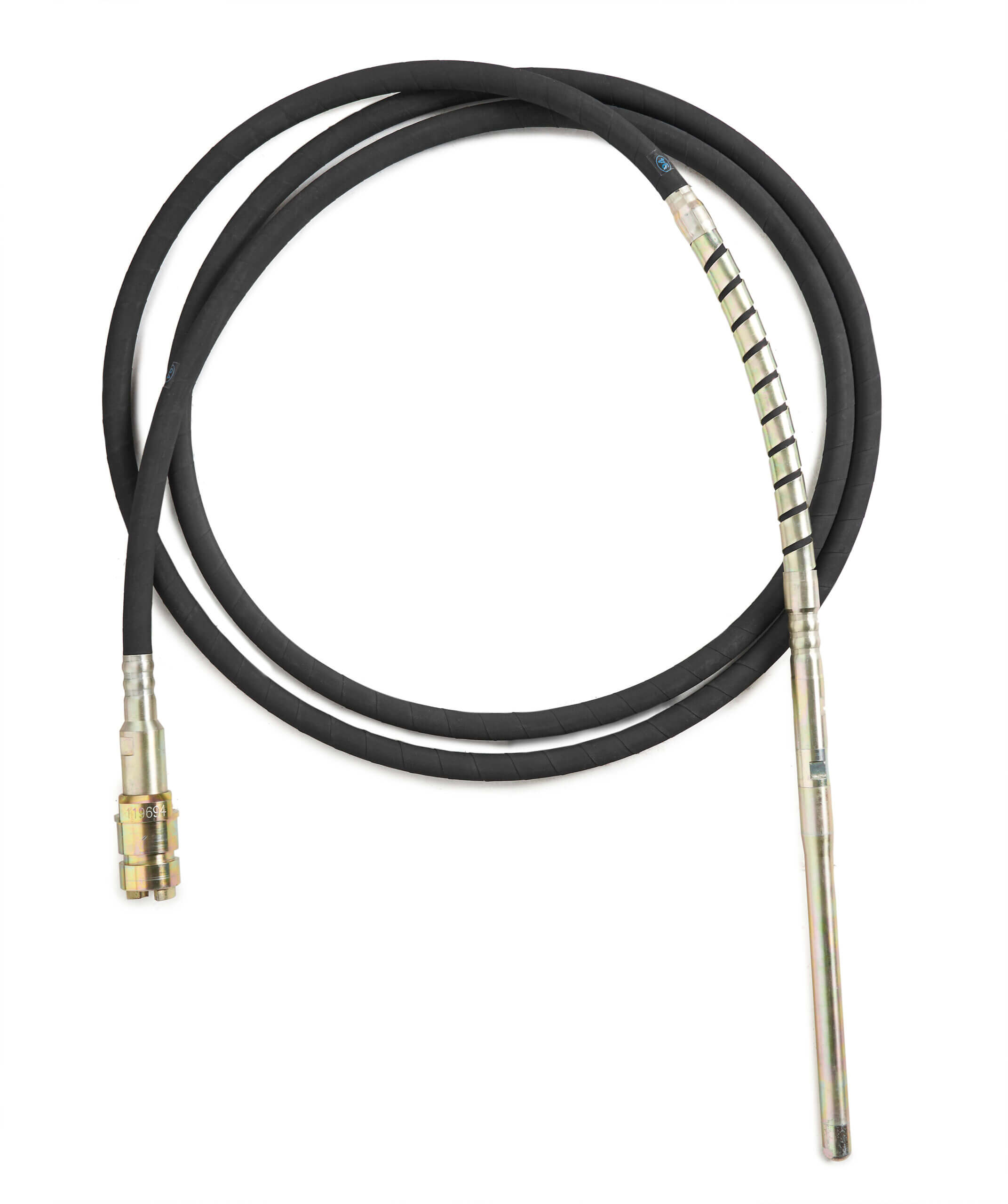

AP Flexible Drive Concrete Pokers

Economy pokers for all concrete applications. High frequency and reliable vibration at lower cost.
Table HeaderTable Header
Diameter mm AP 28 poker head – 28, AP 38 poker head – 38, AP 50 poker head – 50, AP 60 poker head – 60
Head Length mm AP 28 poker head – 470, AP 38 poker head – 492, AP 50 poker head – 508, AP 60 poker head – 503
Amplitude mm AP 28 poker head – 1.5, AP 38 poker head – 1.7, AP 50 poker head – 2.2, AP 60 poker head – 2.4
Frequency Hz (vpm) AP 28 poker head – 210 (12600), AP 38 poker head – 205 (12300), AP 50 poker head – 200 (12000), AP 60 poker head – 200 (12000)
Flex Length mAP 28 poker head – 6, AP 38 poker head – 6, AP 50 poker head – 6, AP 60 poker head – 6
Weight Kg AP 28 poker head – 15, AP 38 poker head – 19, AP 50 poker head – 21, AP 60 poker head – 21.5
Product code AP 28 poker head – 94195, AP 38 poker head – 94179, AP 50 poker head – 94192, AP 60 poker head – 94193

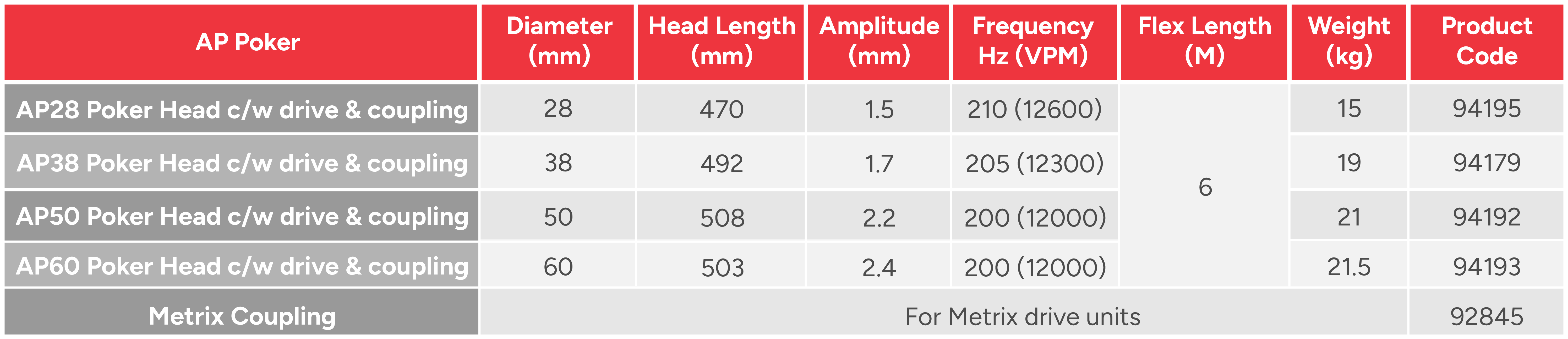

AP Poker specs table
